HTP123 Pro Heat Press – Platen Size 42cm x 42cm

Add to Wishlist

Product Details

Image Transfer Heat Press
The HTP123 Pro Heat Press is the latest innovation to our range of professional heat presses.

Professional drawer-platen clam heat press.
This press is fully compatible with all our transfer processes. The ‘cast element’ together with digital controller and adjustable pressure.
Perfect A3 production press.

Includes 2 PTFE Sheets.

Platen Size: 42x42cm
Detachable platen tables are also available in:

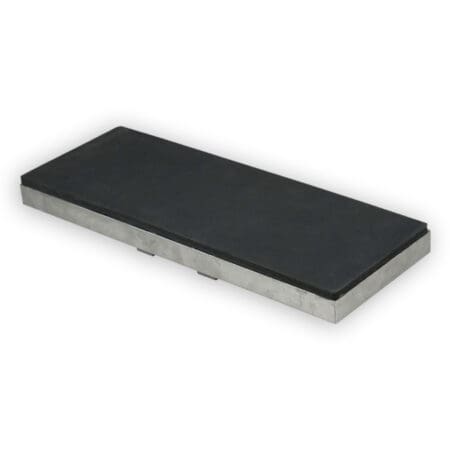

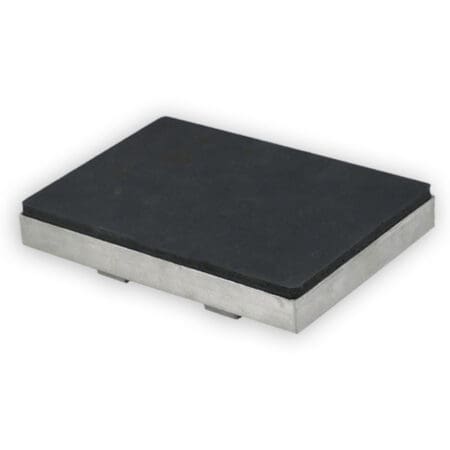

50x15cm, 25x15cm and 10x10cm

For the first time TheMagicTouch offer a space saving clam/draw press that is compatible with all our toner transfer papers, HTV heat transfer vinyl, sublimation transfers and DTF direct to film transfers.

The unique design incorporates a printable area of 42 x 42cm with an accurate temperature range from as low as 80c to 220c. Together with the LCD digital controller and easy to adjust pressure adjustment the HTP123 offer superb value and reliability as never seen before.

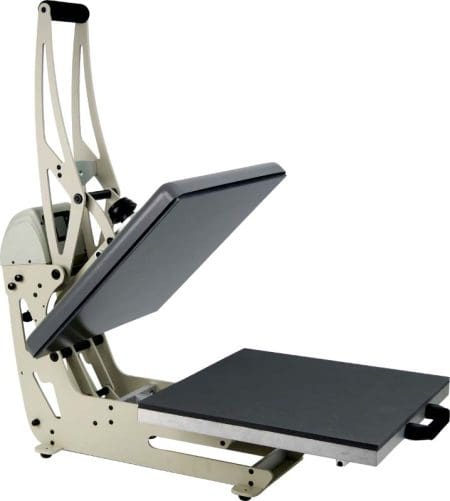

HTP123 Pro Heat Press


This Image Transfer Heat Press comes complete with two year warranty on all parts and 10 year warranty on the cast aluminium heat platen. The press conforms to all current legislation EN 60204-1/A1/AC 2010, EN 61000-6-2/4 and all amendments up to EN 61000-3-13, EN ISO 12100 2010, EN 60204-1/A1/AC 2010, EN 61000-6-2/4.

Standard Platen size 42x42cm for full A3 size transfers
3cm max. latitude to print on thicker products
Slide-out lower platen for ease of handling
Quick change mechanism for interchangeable platens
Touch screen electronic controller

Download Manual Here
